Aluminium Lugs Manufacturer
Aluminium Lugs Manufacturer & Suppliers
We offer a comprehensive range of Aluminium Lugs as a leading manufacturer and supplier based in Kolkata, West Bengal, and serving Odisha, Bihar, and other regions across India. Designed to meet the demands of electricity boards and diverse industries, our aluminium lugs are available in various specifications and are known for their durability and performance.
Applications include:
- Electricity Boards: For power generation and distribution
- Electrical Industries: Used in control panels, switchgears, transformers, and circuit breakers
- Industrial Projects: Ideal for sectors such as shipping, automobile, steel, fertilizers, chemicals, cement, textiles, electronics, mining, aeronautics, satellite, and communications.

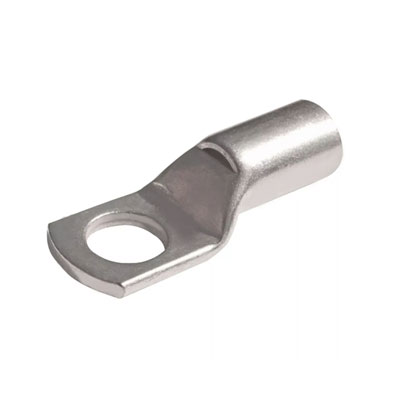

Product Description
Daga Power Systems & Engineers Private Limited’s Aluminum Lugs Manufacturer meet the loftiest quality demand and meet ISI Norms Use of High Quality Pure Conductive Aluminum of 60 IACS imparts high safety and current standing parcels. With fortified experience in the assiduity, we’re engaged in offering high- grade Aluminium Lugs. Used in electrical panels and switchgear and generally are mounted using bolts, the offered lugs are manufactured using the stylish quality raw material and sophisticated technology. Our handed lugs are available in colorful sizes, designs and specifications as per the demands of our guest, also these lugs are tested against colours quality measures in order to insure their quality. We are the top manufacturer of Aluminium Lugs in Kolkata, West Bengal, Odisha, Bihar, Jharkhand, Chhattisgarh, and Assam.
- Materials Conductive Aluminium 60 IACs.
- Finished polished Aluminimum.
- Available in two hole for DB connection.
- Sizes from 1.5 sqmm to 1000 sqmm with different bolt size.
Salient Features:
- Keeps temperature rise within specified limits of is 5561-1970
- Sufficient thickness to carry required rated current
- Capable of carrying overcurrent for some period
- Homogeneity of jointing material and the cable so as to avoid sparking
- Dimensional sizes ensuring the current density is sufficiently low to reduce substantially
- Well sealed packaging
Specification
Prod. Code | Cable mm2 | Dimensions | |||||
A | C | D | E | J | B | ||
DPS 16-10 | 16 | 5.5 | 16 | 20 | 10.3 | 79 | 43 |
DPS 25-10 | 25 | 6.5 | 16 | 20 | 10.3 | 79 | 43 |
DPS 35-10 | 35 | 8 | 16 | 20 | 10.3 | 79 | 43 |
DPS 50-12 | 50 | 9 | 20 | 25 | 12.8 | 85 | 43 |
DPS 70-12 | 70 | 11 | 20 | 25 | 12.8 | 85 | 43 |
DPS 95-12 | 95 | 12.5 | 20 | 25 | 12.8 | 85 | 43 |
DPS 120-12 | 120 | 13.7 | 25 | 30 | 12.8 | 108 | 59 |
DPS 150-12 | 150 | 15.5 | 25 | 30 | 12.8 | 108 | 59 |
DPS 185-14 | 185 | 17 | 32 | 35 | 14.5 | 115 | 59 |
DPS 240-14 | 240 | 19.5 | 32 | 35 | 14.5 | 115 | 59 |
DPS 300-16 | 300 | 23.3 | 40 | 36 | 16.5 | 137 | 85 |
DPS 400-16 | 400 | 26 | 40 | 36 | 16.5 | 153.5 | 85 |
DPS 500-16 | 500* | 29.1 | 47 | 60×60 | 4Ø 9 | 196 | 95 |
DPS 630 4X9 | 630* | 33.5 | 47 | 60×60 | 4Ø 9 | 196 | 95 |
DPS 800 4X9 | 800* | 37.5 | 53 | 80×80 | 4Ø 9 | 232 | 100 |
DPS 1000 4X9 | 1000* | 42 | 60 | 80×80 | 4Ø 9 | 256 | 126 |
DPS 1300 4X 11 | 1300* | 46.5 | 65 | 80×80 | 4Ø 11 | 267 | 136 |
